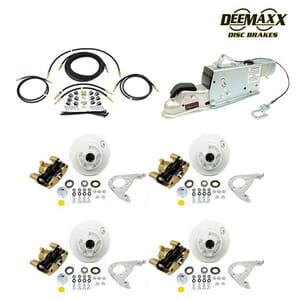

MAXX KIT Hydraulic Actuator 3,500 lbs. Integral Disc Brake Kit for a Tandem Axle with MAXX Dacromet Calipers and TruRyde® Bearings - DMK35IM2ACT
Manufacturer: DeeMaxx Components
Part #: DMK35IM2ACT
| UPC: 00810067323192
Price:
$1,482.99
This product qualifies for quantity discount pricing
| Quantity | Discount% | Discounted Base Price |
|---|---|---|
| 2-5 | 5% | $1,408.84 |
| 6-20 | 10% | $1,334.69 |
| 21-250 | 15% | $1,260.54 |
Free FedEx Ground Shipping and Volume Pricing
106 Years in Trailer parts Distribution
Frequently Bought With
REPLACEMENT PARTS FOR THIS KIT
TRAILER AXLES USED WITH THIS KIT
Description
The Maxx kit will include one 8705101 Demco Disc Brake Actuator with Blocking Solenoid Kit, one DeeMaxx DOT-TA20K 20 Foot Tandem Axle Brake Flex Hose Kit, and four 3,500 lbs. DeeMaxx MAXX dacromet finish caliper with DeeMaxx integral disc brakes and TruRyde® bearings.
The 8705101 7,000 lb. G.V.W.R. Disc Brake Actuator with Blocking Solenoid Kit. 1/2" x 4 1/2" grade 5 bolts are required in mounting of straight actuators. 600 lb. maximum tongue load. Limited to coupler rating. Plated actuator may be used in a marine application. Plated, top mount, lever lock coupler. 2" ball 3" channel.
3,500 lbs. DeeMaxx MAXX Finish disc brake:
- 5 lug 1/2" studs. 10" Integral vented rotor.
- Unique rotor cross section design actively draws cooling air from the rotor interior!
- Exclusive 120º bleeder design means better bleeding, balanced system, and no more damaged bleeders!
- Exclusive laser writing on caliper means instructions are always there!
- Every caliper is tested to 2000 psi
- Robust ductile iron casting eliminates flexing resulting in more brake torque.
- Exclusive bolt design means no more mishandling or incorrect shipping of bolts.
- Compatible with every surge and electric over hydraulic actuators!
- Ceramic brake pads are slotted, chamfered, & feature a stainless steel clip
- Unique bracket design provides twice as many mounting options for caliper position
- Produced in ISO Quality certified factories!
- Passed the SAE J2681 Brake test!
| Part No | Quantity | Description |
| 8705101 | 1 | Demco Disc Brake Actuator with Blocking Solenoid Kit |
| DOT-TA20K | 1 | DeeMaxx 20 Foot Tandem Axle Brake Flex Hose Kit |
| 716LW | 16 | 7/16" Lock Washer |
| 716NFN | 16 | 7/16" HEX Fine Nut |
| 716X114NFBLN | 16 | 7/16" Mounting Bolt |
| DC-RPY | 4 | DeeMaxx Yellow Silicone Rubber Lube Plug |
| FS622 | 4 | 1.98" Lube Dust Cap |
| DM35KROTOR |
4 | DeeMaxx 10.2" Rotor & Hub 5 Lug Integral with Maxx Coating |
| SWCALP3-6KMAXX |
4 | DeeMaxx 3,500 - 6,000 lbs. MAXX Dacromet Plated Finish Disc Brake Caliper w/Organic Pads |
| DBB-3.5KI-MAXX |
4 | DeeMaxx Disc Brake Bracket for 3.5K Axle Integral Rotor Maxx Coating |
| L68149 | 4 | TruRyde® Inner Bearing |
| L44649 | 4 | TruRyde® Outer Bearing |
| GS-1719DL | 4 | 1.719" ID Double Lip Grease Seal |
| X1023R | 20 | 1/2"-20 Lug Nut 60 Degree 13/16" WAF |
